1000A/1A 0.1% precision Oscilloscope AC Clamp On Current Transformer With BNC connector & 4mm banana connector
Q50A 1000A/1A 0.1% precision Oscilloscope AC Clamp On Current Transformer With BNC connector & 4mm banana connector
In electrical and electronic engineering, a Oscilloscope AC Clamp On Current Transformer is an electrical device having jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it.

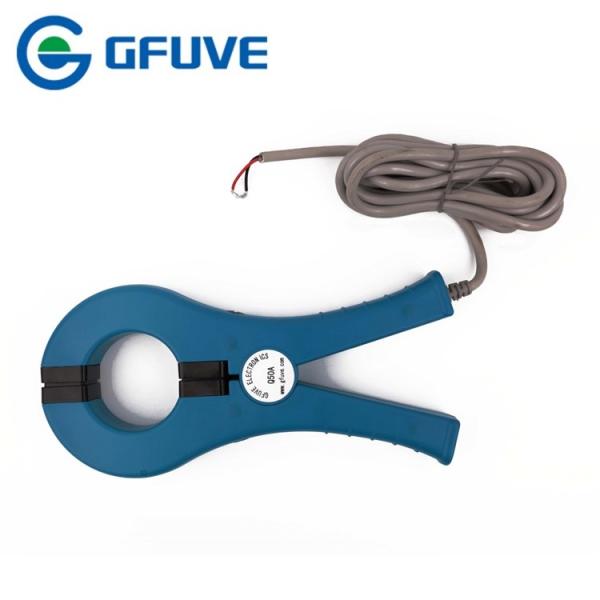

Oscilloscope AC Clamp On Current Transformer Q50A features 50 mm jaw size and high linearity. It is a ac current clamp which can measure 0-1000A cable. Product comes with a year warranty.
Clamp-On Current Transformers GFUVE® maintains a large in-stock inventory of Clamp-On Current Transformers including AC, Micro Clamp and Clamp-On CT Accessories for most common applications. Below is a list of all clamp-on current transformers available through GFUVE material, however, not all models are in-stock.
Clamp-on Current Transformer Current Clamp is a high-precision AC current converter, and can meet a variety of measuring instruments, It can be used along with many kinds of instruments and devices, such as energy meter spot calibrator, multifunctional meter, oscilloscope, digital multimeter, dual clamp Ground resistance tester, dual clamp phase volt ammeter.
Applications
Electric energy meter calibrator (on site)
Double clamp type ground resistance tester
Double clamp type phase volt-ampere meter
Digital multi-meter
Multi-function energy meter
Power quality analyzer
Matched instruments
Calibration instrument on site
Features
Suitable for 1000A cable online measurement.Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameter
| Electrical parameters |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal | 500mA,1A,5A AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
| Weight (g) | 550 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |
| Jaw color | Blue |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
Photos
FAQ, following questions will help you to select the matched Clamp On Current Transformer for your applications.
1. Please determine if you are measuring AC or DC?
GFUVE Q50A-2 is for AC measurement.
2. What is the maximum current you will measure?
Q50A-2 maximum current is 1200A
3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.
Q50A-2 can clamp conductor within diameter of 50mm
4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?
Q50A-2 can customize output with A, V.
5. What is the working voltage of the conductor to be measured?
GFUVE probes should be used below 600 volts
6. What type of termination do you need: jacks, leads or BNC?
Q50A-2 standard has 2.5meter leads. We can offer jacks or BNC… as options.
7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
