Electricity Meters Portable Meter Test Equipment 2nd To 63th Harmonic Wave

Name: Electricity Meters Portable Meter Test Equipment 2nd To 63th Harmonic Wave
Brand: GFUVE
Price: 6000 USD

China Electricity Meters Portable Meter Test Equipment 2nd To 63th Harmonic Wave wholesale

Brand Name : GFUVE

Model Number : GF312B-2

Certification : CE, ISO9001

Place of Origin : BEIJING CHINA

MOQ : 1SET

Price : 6000-12000USD/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SET/MONTH

Delivery Time : 2-3weeks

Packaging Details : Standard Export Box

Name : Portable Meter Test Equipment for Electricity Meters 2nd to 63th Harmonic

Accuracy : 0.05%

Output level : 5V

Weight (including Accessories 3pcs 100A clamp CT) : 12kg

Communication port : RS232

Resolution : 6”TFT (640×480)

Contact Now

Portable Meter Test Equipment for Electricity Meters 2nd to 63th Harmonic

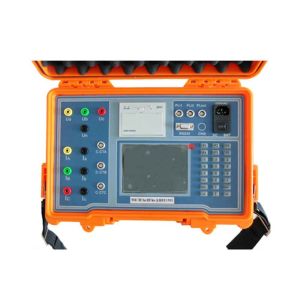

GF312B portable three phase Energy Meter Calibration Equipment with printer is used to calibrate three phase, single phase, active and reactive watt meters. And it also can be used as voltage, current and power meter to measure AC parameters of three phase power line.It can measure wave distortion factor and 2nd to 63th harmonic wave. it is high precision 0.05%, measurement current 0-24A directly, 0-120A or 0-3000A with clamp on ct. 100A clamp on ct has software compensation, the precision can reach 0.05%.

FEATURES

Three phase active or reactive electricity energy meter
Calibrate three phase, single phase, active or reactive meter error
Measure U(voltage) of three phase or single phase
Measure I(current) of three phase or single phase
Measure active power of three phase or single phase
Measure reactive power of three phase or single phase
Measure apparent power of three phase or single phase
Measure power factor of three phase or single phase
Measure phase angle between voltage and current
Measure frequency of power line

PARAMETERS

Electrical parameters
Accuracy class	0.05, 0.1%, 0.2%
Power supply	220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz
Test Voltage
Range	0V-600V
Error	±0.05% (30V-600V) ±0.1% (5V-30V)
Error	±0.05% (30V-600V) ±0.1% (5V-30V)
Harmonic	2^nd-63^st
Test Current
Range (direct connection)	20mA-20A
Error (direct connection)	±0.05% (100mA-20A) ±0.1% (20mA-100mA)
Error (direct connection)	±0.05% (100mA-20A) ±0.1% (20mA-100mA)
Range (Clamp CT)	10mA-3000A
Error (Clamp CT)	±0.2% (100mA-3000A) ±0.5% (10mA-100mA)
Error (Clamp CT)	±0.2% (100mA-3000A) ±0.5% (10mA-100mA)
Harmonic	2^nd-63^st
Power measure error
Active power (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.02A-0.1A)
Active power (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.02A-0.1A)
Reactive power (direct connection)	±0.1% (0.1A-20A)
Energy measure error
Active energy (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.02A-0.1A)
Active energy (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.02A-0.1A)
Reactive energy (direct connection)	±0.1% (0.1A-20A)
Phase angle
Range	0^o ~ 360^o
Resolution	0.01^o
Error	±0.05^o
Frequency
Range	45Hz-65Hz
Resolution	0.001Hz
Accuracy	0.005Hz
Power factor
Range	-1 ~ 0 ~ 1
Resolution	0.0001
Error	0. 0005
Pulse output
Energy constant	180000imp/kWh, 1800imp/kWh, 18imp/kWh
Pulse ratio	1:1
Output level	5V
Pulse input
Input channel	1
Input level	5-24V
Input frequency	Max. 2MHz
Display
Resolution	6”TFT (640×480)
Function
Vector diagram	Yes
Waveform	Yes
Energy accumulation	Yes
Communication port	RS232
Communication with PC	Yes
Mechanical parameters
Dimensions (W×H×D) (mm)	390×200×160
Host Weight (mm)	3
Weight (including Accessories 3pcs 100A clamp CT) (kg)	12
Environmental conditions
Ambient temperature	-10°C to 40°C
Relative humidity	30%-85%
